EN 13964 : 吊頂-要求和試驗方法

EN 13964:  Suspended ceilings - Requirements and test methods

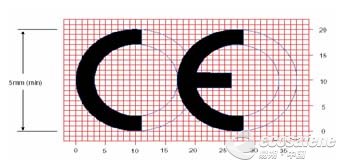

在歐盟市場“CE”標志屬?gòu)?qiáng)制性認證標志，以表明產品符合歐盟《技術協調與標準化新方法》指令的基本要求。這是歐盟法律對產品提出的一種強制性要求。



在吊頂上加貼CE標志不但可以證明其產品符合建筑產品指令（CPR 305/2011/EU）及其相關標準（歐洲協調標準EN 13964）規定的安全，環保，衛生和消費者保護。而且可以合理規避貿易技術壁壘，在歐洲市場自由銷售并打開其他國際市場。



從2013年7月1日年開始，所有進入歐盟市場的吊頂需要符合新的歐盟建筑產品法規CPR 305/2011/EU，通過測試，獲得認證，并加貼CE標志。

注：歐盟建筑法規CPR（Construction Product Regulation） 305/2011/EU 全面取代歐盟建筑產品指令CPD(Construction Product Directive) 106/89/EEC, 并且從2013年7月1日起強制執行





A．產品指令： 建筑產品法規CPR(Construction Product Regulation) 305/2011/EU

B．歐洲協調標準：

EN 13964 : 吊頂-要求和試驗方法

EN 13964 : Suspended ceilings - Requirements and test methods





該歐標提供了用于普通建筑和土木工程內部應用的吊頂設計，制造和選用的相關信息。 它涵蓋完整的吊頂套件（包括自行配置，燈飾和其他產品），基材套件和和獨立元件（產品），如基材，薄膜元件等。它包括測試方法和評估方法，以及標準要求的符合性評估。

The European Standard provides information for the various parties responsible for designing, manufacturing and specifying/selecting suspended ceilings used for interior applications in general building and civil engineering structures. It covers suspended ceilings sold as a complete kit (including, optionally, light fittings and other features), substructures sold as kits, individual components (products) of such substructures, and membrane components. It includes test methods and methods of assessment, as well as provisions for the evaluation of conformity of the products to the requirements of this standard.



這個標準指定常用的天花板結構和薄膜物組件的相關尺寸,公差,性能要求。



此標準不涵蓋以下內容：

-可移動建筑的天花板；

-天花板加熱或冷卻性能；

-天花板受水滲透的要求；

-天花板外部使用，除了此范圍所涵蓋的要求（隧道，檐篷，加油站，商場，開放體育設施，停車場等；

?重型吊頂或配套建設；



該標準包括以下基本特征：

-對火反應；

-防火性能（吊頂）

-釋放石棉（吊頂和薄膜物組件）

-甲醛釋放（吊頂和薄膜物組件）

-粉碎性能（用于吊頂?shù)拇嗳醣∧の锝M件）

-彎拉強度

-承載能力

-電氣安全

-直接空氣隔音（吊頂）

-吸音（吊頂和薄膜物組件）

-熱導率（吊頂）

-抗彎強度耐久性和承載能力

-冷凝



This standard does not cover the following:

? ceilings in mobile buildings, caravans and other forms of transportation,

? ceilings with heating or cooling properties,

? ceilings subject to water penetration requirements,

? ceilings used externally where requirements other than covered by this scope would apply (tunnels, canopies,petrol stations, arcades, open sports facilities, car parks, etc.),

? heavy duty suspended ceilings or their supporting construction,



The standards covers the following essential characteristics:

? reaction to fire,

? resistance to fire (suspended ceiling kits only),

? release of asbestos (content) (suspended ceiling kits and membrane components only),

? release of formaldehyde (suspended ceiling kits and membrane components only),

? shatter properties (for membrane components of brittle materials in suspended ceiling kits only),

? flexural tensile strength,

? load bearing capacity,

? electrical safety,

? direct airborne sound insulation (suspended ceiling kits only),

? sound absorption (suspended ceiling kits and membrane components only),

? thermal conductivity (suspended ceiling kits only),

? durability of flexural tensile strength and load bearing capacity against moisture,

? condensation.



The standard also covers the following non-essential requirements:

? colour and light reflectance,

? installation.


吊頂CE認證－性能要求

根據EN13501-1進行測定評估，防火等級為A,B,C,D,E,F,

（產品用于防火用途，如果產品使用阻燃劑以提高產品性能，需要根據體系1進行認證，否則根據體系3認證）

耐火性能Fire Resistance:

如果用于隔火用途，需要根據EN 13501-2 進行耐火極限測試，耐火30分鐘，60分鐘或者90分鐘



吊頂CE認證-相關參考標準

- EN 13501-1:2007:建筑制品和構件的火災分級-第一部分:用對火反應試驗數據的分級/EN 13501-1:2007:Fire classification of construction products and building elements-Part1: Classification using data from reaction to fire tests. /

- EN 13501-2: 歐盟建筑產品及構件的耐火性能分類，第2部分:通風設備除外耐火試驗數據分類./ EN 13501-2:Fire classification of construction products and building elements-Part 2: Classification using data from fire resistance tests, excluding ventilation services

- EN 520: 石膏板.定義,要求和試驗方法/EN 520 : Gypsum plasterboards - Definitions, requirements and test method
- EN 14716: 拉伸頂棚-要求和試驗方法/EN 14716: Stretched ceilings - Requirements and tests methods

- EN 20140-9,聲學-建筑構件隔音測試-第9部分：吊頂房間與房間之間的隔音測試/EN 20140-9, Acoustics – Measurement of sound insulation in buildings and of building elements – Part 9:Laboratory measurements of room to room, airborne sound insulation of a suspended ceiling with plenum above it.

- EN ISO 354,聲學-空響室吸音測定/ EN ISO 354:2003, Acoustics – Measurement of sound absorption in a reverberation room.

- EN ISO 140-3,聲學-建筑隔音測試-第3部分：建筑隔音實驗室測試方法/EN ISO 140-3, Acoustics – Measurement of sound insulation in buildings and of building elements – Part 3:Laboratory measurements of airborne sound insulation of building elements.

- EN 12667 建筑材料和制品熱學性能 / EN 12667, Thermal performance of building materials and products – Determination of thermal resistance by means of guarded hot plate and heat flow meter methods – Products of high and medium thermal resistance



- 歐洲強制CE認證

- 美國船舶海岸警衛USCG認證

- 歐洲船舶Wheelmark認證

- Certifire防火認證

- 英國LPCB防火認證

- 美國UL認證



- 各國防火阻燃檢測認證，EN13501-1,GB 8624,GB 9978, BS 476-7, BS 476-20

- 室內空氣質量VOC測試, AgBB, ISO 16000-6

- 化學測試：RoHS, Reach, PAHs, 重金屬測試等等

- 物理測試：拉伸強度，破壞，彎曲性能，剪切強度等

- 導熱性能測試：EN 12664, EN 12667

- 隔音測試：ISO 140-3, ISO 354, ISO 20140
